Explore this familyBLESS / Frames
Frames with
assembly in mind.
BLESS presents frame reference components from its company photo archive. For a new frame project, the customer drawing defines the geometry, material, mounting interfaces, machining and acceptance requirements.
Taicang & GaoyouDrawing-led manufacturing
Look at the features
that define the fit

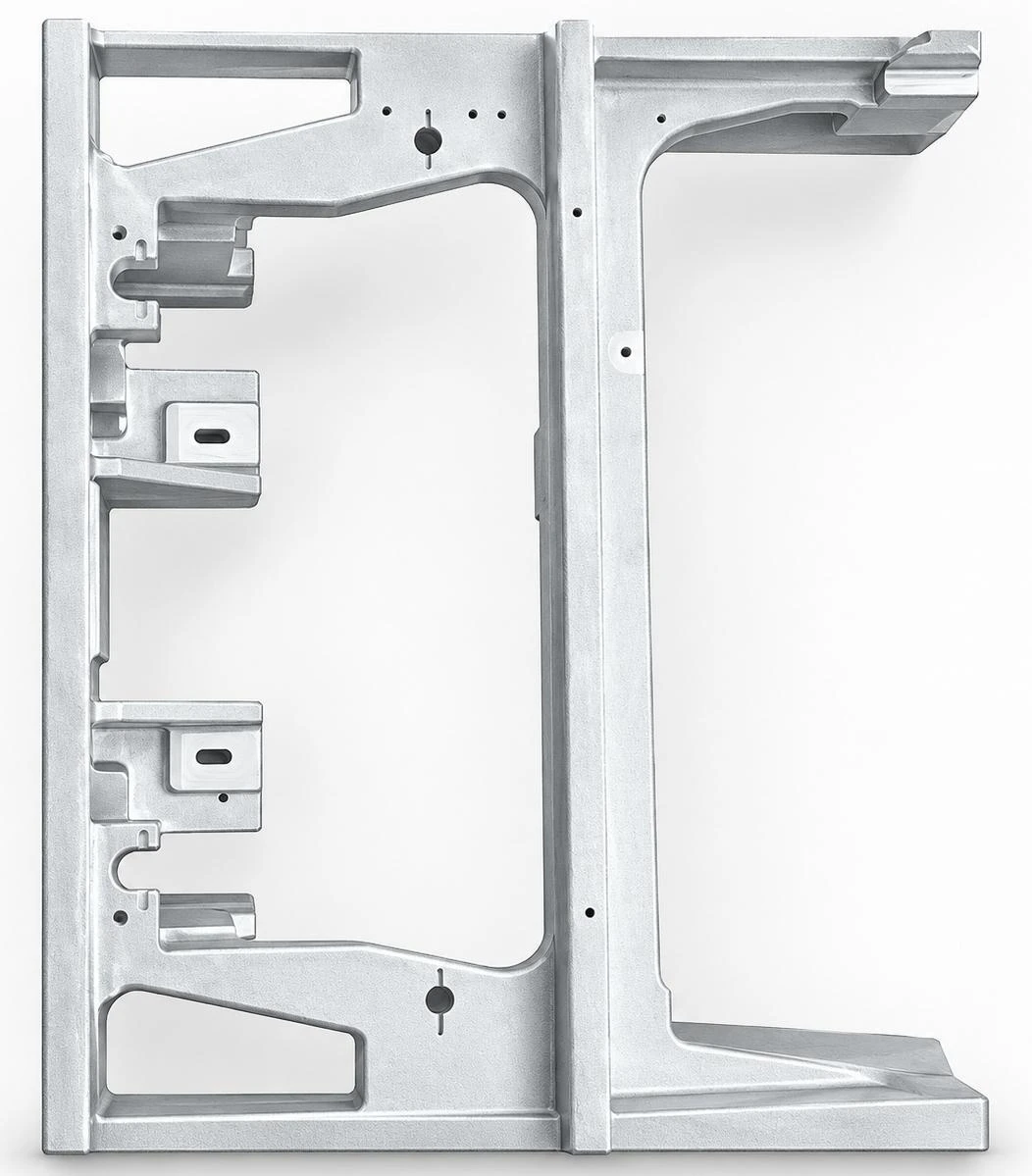

Frame reference components with machined mounting faces, openings and connection features. The images are reference parts, with the actual specification confirmed against your own drawing.
- Mounting facesIdentify the faces that locate or support the surrounding assembly.
- Hole relationshipsSpecify the location and relationship of mounting holes and connected interfaces.
- Overall geometryProvide the drawing dimensions and datums used to check the complete frame.
Turn the reference
into a project brief
Frame drawing, mounting interfaces, datums, material specification and inspection requirements.
| Review item | Information to confirm |
|---|---|
| Part definition | Customer drawing, revision and intended application |
| Material | Exact designation and applicable standard; open items marked for discussion |
| Manufacturing route | Casting, tooling, CNC machining and coating reviewed together |
| Inspection | Critical features, acceptance criteria and requested reports |
| Quantities and timing | Order quantities and sample needs provided by the customer; timing confirmed per project |
Explore other
component families
Use the reference collection to start the discussion, then define the part with your own requirements.
Pipes & Manifolds
Pipe and manifold reference components with tubular sections and connected openings. Reference parts; specifications are confirmed against your drawing.
Explore this family
Machined Brackets
Bracket reference components with installation faces, holes and machined interfaces. Reference parts; specifications are confirmed against your drawing.
Explore this family
Structural Parts
Structural reference components with repeated features and assembly interfaces. Reference parts; specifications are confirmed against your drawing.
Explore this family
Small Castings
Small casting references with varied openings, ribs and connection features. Reference parts; specifications are confirmed against your drawing.
Explore this familyFrequently asked questions
What does a custom aluminum casting supplier need to quote an OEM component?
Provide a drawing with its revision, the intended application, estimated order quantity and project stage. Identify the required material specification, critical dimensions, machining, surface requirements and inspection records. If an item is undecided, mark it for discussion rather than assuming a standard specification.
Can an aluminum casting also require CNC machining?
Yes. Casting establishes the basic component shape; CNC machining may be specified for features such as mating faces, bores and threads. Mark these requirements on the drawing, including datums and dimensional requirements, so casting and machining can be discussed as one project.
Are the photographed components standard products available from stock?
The photographs are references from the BLESS image library. They do not establish inventory, a standard specification or the casting process used for a part. Send your own drawing and requirements to discuss a custom component.
Ready to send
your drawing?
Tell us what the part must do. A clear first reply should explain what we can confirm, and what we still need from you.
Useful project information
- Current drawing and revision
- Material and estimated quantity
- Critical features and surface requirements
- Project stage and delivery destination
