Explore this familyBLESS / Small Castings
Small components.
A complete specification.
BLESS presents small aluminum casting reference parts from its company archive. Each inquiry is reviewed around the customer drawing, material, quantities, machining, finishing and required checks.
Taicang & GaoyouDrawing-led manufacturing
Look at the features
that define the fit

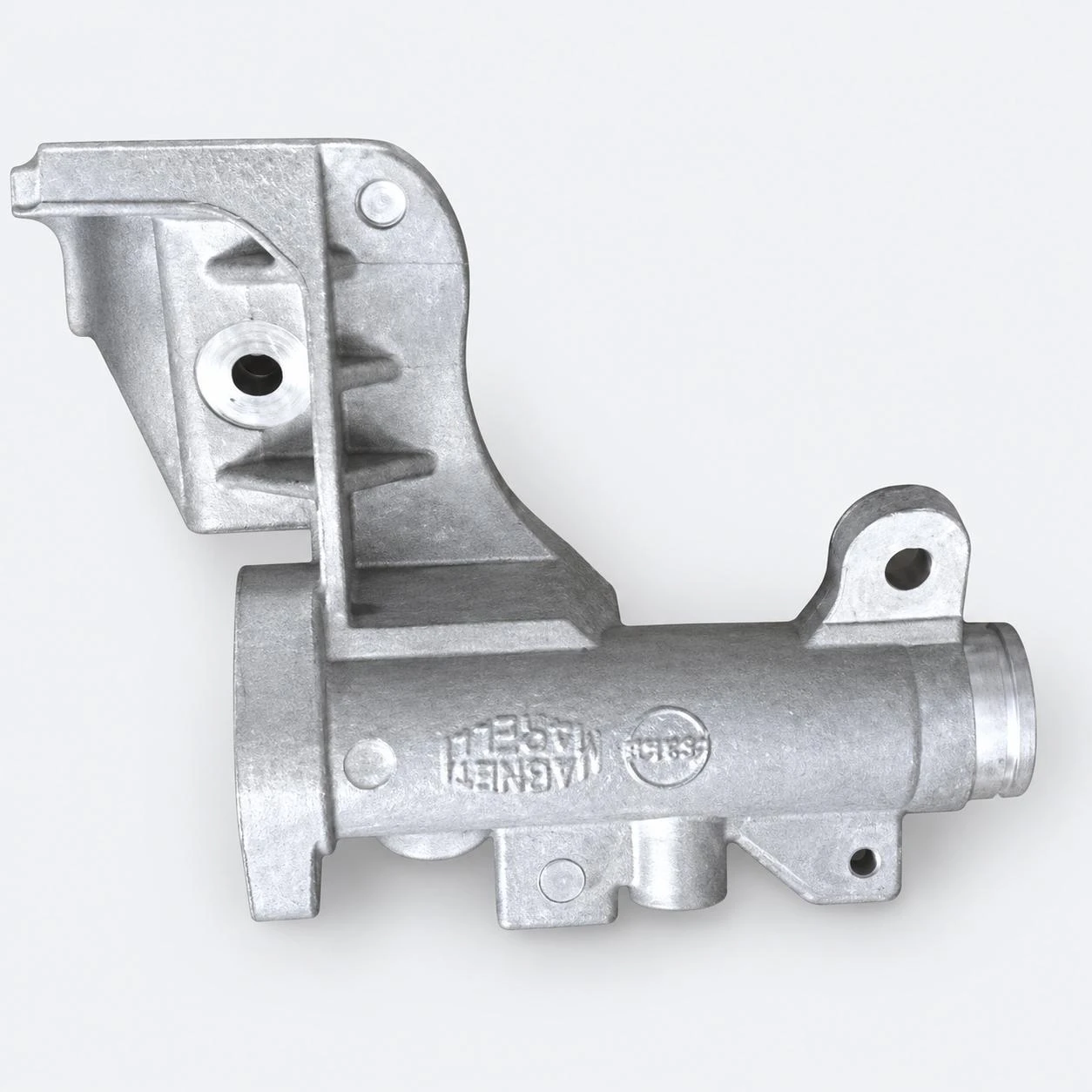

Small casting references with varied openings, ribs and connection features. The images are reference parts, with the actual specification confirmed against your own drawing.
- Component definitionShare the drawing revision and the intended application rather than relying on a photograph.
- Functional featuresMark holes, threads, mating faces and any dimensions that affect assembly.
- Quantity and handlingState estimated order quantities, sample requirements and packaging needs for discussion.
Turn the reference
into a project brief
Component drawing, material, quantities, sample requirements, critical features and packaging needs.
| Review item | Information to confirm |
|---|---|
| Part definition | Customer drawing, revision and intended application |
| Material | Exact designation and applicable standard; open items marked for discussion |
| Manufacturing route | Casting, tooling, CNC machining and coating reviewed together |
| Inspection | Critical features, acceptance criteria and requested reports |
| Quantities and timing | Order quantities and sample needs provided by the customer; timing confirmed per project |
Explore other
component families
Use the reference collection to start the discussion, then define the part with your own requirements.
Housings & Covers
Housing and cover reference parts showing openings, internal forms and mating faces. Reference parts; specifications are confirmed against your drawing.
Explore this family
Pipes & Manifolds
Pipe and manifold reference components with tubular sections and connected openings. Reference parts; specifications are confirmed against your drawing.
Explore this family
Machined Brackets
Bracket reference components with installation faces, holes and machined interfaces. Reference parts; specifications are confirmed against your drawing.
Explore this family
Structural Parts
Structural reference components with repeated features and assembly interfaces. Reference parts; specifications are confirmed against your drawing.
Explore this familyFrequently asked questions
What does a custom aluminum casting supplier need to quote an OEM component?
Provide a drawing with its revision, the intended application, estimated order quantity and project stage. Identify the required material specification, critical dimensions, machining, surface requirements and inspection records. If an item is undecided, mark it for discussion rather than assuming a standard specification.
Are the photographed components standard products available from stock?
The photographs are references from the BLESS image library. They do not establish inventory, a standard specification or the casting process used for a part. Send your own drawing and requirements to discuss a custom component.
What should overseas procurement teams clarify before ordering?
Clarify the drawing revision, quantities, sample approval requirements, inspection records, packaging and requested delivery destination. Ask for project-specific confirmation of commercial terms and timing. A requested delivery date should not be treated as a confirmed lead time.
Ready to send
your drawing?
Tell us what the part must do. A clear first reply should explain what we can confirm, and what we still need from you.
Useful project information
- Current drawing and revision
- Material and estimated quantity
- Critical features and surface requirements
- Project stage and delivery destination
